One Protocol to Track Them All
article written by Jonas Lembrechts
20.12.21 | 11:12

This blog post written by Jonas Lembrechts, postdoctoral researcher at the Centre of Excellence on Plants and Ecosystems at the University of Antwerp, presents a standardized protocol developed by the Mountain Invasion Research Network (MIREN). The protocol was designed to systematically quantify global patterns of native and non-native species distributions along elevation gradients and shifts in these distributions arising from interactive effects of climate change and human disturbance.

It was the year 2005. A group of mountain ecologists gathered in Vienna, Austria, for what would turn out to be an appointment with history. Their topic? Plant invasions in mountains! A consensus was soon reached that there was an important research gap to fill. While the overall view was, up till then, that mountains had been spared from invasion by non-native plant species, global change and increasing land-use pressures in mountains across the globe were rapidly changing that reality. However, there was very little global information on these patterns, with only a fairly recent regionally scattered literature emerging. The time was ripe, so they decided on a globally coordinated protocol. The Mountain Invasion Research Network (MIREN) was born.

The next year, the team gathered again in Oregon, and it is there that the MIREN road survey protocol saw the light of day. The idea was to monitor non-native plant species along mountain roads, with a standardized survey design in the form of a T, and repeat that survey every five years – till eternity, so one might hope – to get the critical baseline information on how quickly non-native species are spreading along mountain roads.

pasted image 0

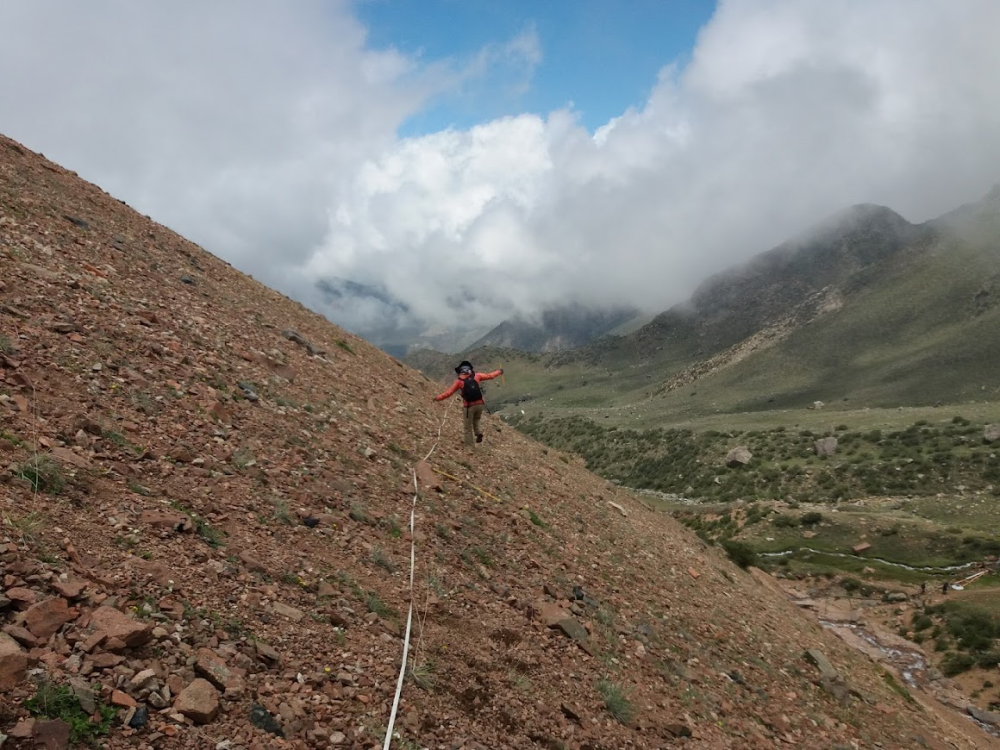

MIREN road survey in action on a steep slope in the Argentinean Andes near Mendoza. Picture by Maika Bilbao

Soon after, the protocol got expanded, and now it includes native species as well, allowing the study of range shifts of all plant species along elevational gradients, and the impacts of climate and roads on these, over time. In a recent paper, published in the open access journal Ecology & Evolution, we finally present the survey methodology and the summary of achievements to the world, hoping that it can become a standard monitoring tool in mountain regions across the globe.

What we present is a conceptually intuitive and standardized protocol developed by the Mountain Invasion Research Network (MIREN), designed to 1) systematically quantify global patterns of native and non-native species distributions along elevation gradients and 2) shifts in these distributions arising from interactive effects of climate change and human disturbance. Usually repeated every five years, surveys consist of 20 sample sites located at equal elevation increments along three replicate roads per sampling region. At each site, three plots extend from the side of a mountain road into surrounding natural vegetation, in the characteristic T-shaped design. In each of these plots, presence, cover and abundance of all vascular plant species are noted down.

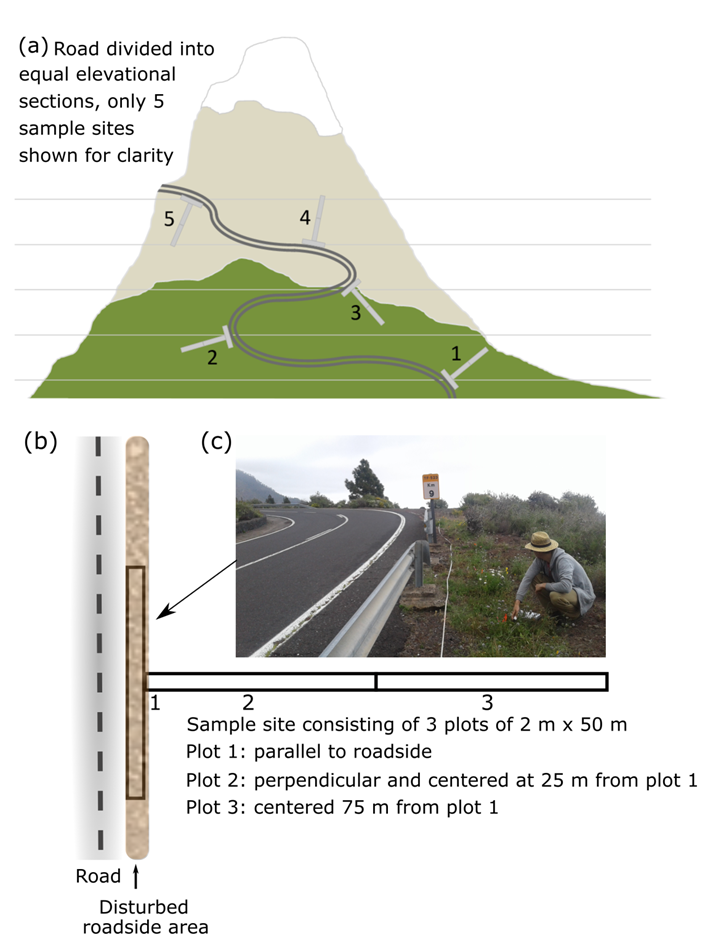

Layout of the MIREN survey design. (a) Equal elevational distribution of 20 sample sites along a mountain road, of which three are selected in each region; (b) Each sample site consists of 3 plots of 2 m x 50 m, plot 1 – parallel to the roadside (starting at the first occurrence of roadside vegetation), plot 2 – centred 25 m from the roadside plot, plot 3 – centred 75 m from the roadside plot; (c) exemplary photograph of monitoring a mountain roadside in Tenerife, Canary Islands, Spain, depicting a survey of plot 1.

The protocol has been successfully used in 18 regions worldwide from 2007 to the present. So far, analyses of the data already generated salient results, both in regional studies and global assessments. For example, we found region-specific elevational patterns of native plant species richness, but a globally consistent elevational decline in non-native species richness. Non-native plants were also more abundant directly adjacent to road edges, suggesting that disturbed roadsides serve as a vector for invasions into mountains. From the upcoming analyses of time series – in some regions we now have three timesteps, over a 10 year period, and the 4th one will be collected this year – even more exciting results can be expected. Indeed, as the covered time frame gets longer, our assessment of species range changes will further improve.

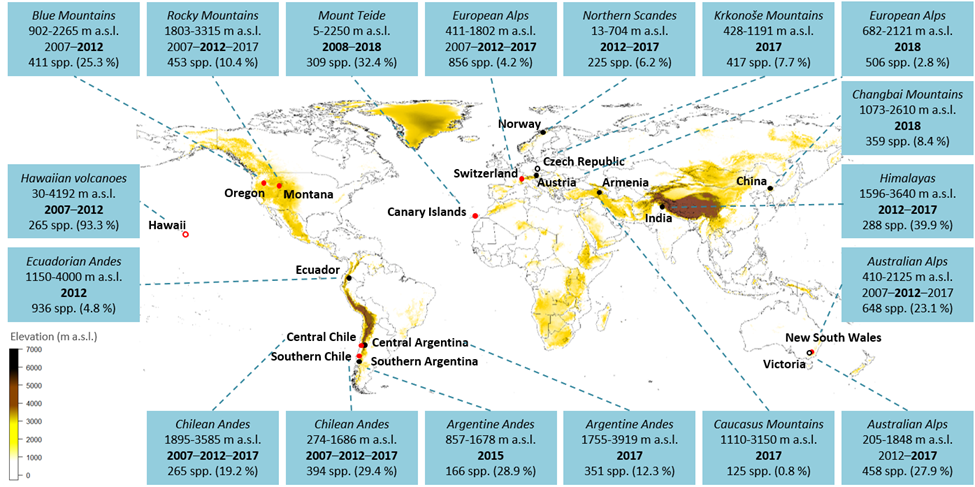

Regions worldwide participating in the MIREN vegetation survey along mountain roads. Red symbols indicate the founding regions from the first survey in 2007. In regions with unfilled symbols, only roadside plots, but not intermediate and interior plots in natural vegetation were sampled. For each region, the name of the mountain range, the sampled elevation gradient and the year(s) of sampling are given. Years in bold indicate that both native and non-native species were recorded, while in years with normal font only non-native species were recorded. Note that some regions did not follow the 5-year sampling frequency. In the last row, the total number of species and, in parentheses, the proportion of non-native species are summarized.

Think all of this sounds fun and important? Perhaps you can join us!

Implementing the protocol in more mountain regions globally would help to generate a more complete picture of how global change alters species distributions. By publishing our protocol for all to read, we hope to enthuse the global ecological community to join forces with us and apply the protocol in your own region. With the MIREN protocol, you would have a unique tool in hand to monitor the impact of climate, climate change and anthropogenic disturbance on the vegetation in your mountain, with interesting patterns bound to emerge from the first sampling onwards. Feeding your data into our increasingly large database can then generate interesting comparisons about how your region compares to plant species diversity patterns in mountain regions across the world. This information can – and already does – inform conservation policy in mountain ecosystems worldwide, where some conservation policies remain poorly implemented.

Examples of roads in the landscape (a-c) and key non-native species (d-f) across a range of MIREN regions. (a) Harsh mountain climates (here the Cañadas del Teide on Tenerife (Canary Islands, Spain) have traditionally been seen as an adequate barrier against non-native plant invasion; (b) the direct local impact of roadside disturbance on mountain plants is visible on native Azorella cushion plants along a road in the dry Andes near Mendoza, Argentina; (c) interactive effects of climate and land use, exemplified by dramatic differences in snow cover on versus beside a mountain road in northern Norway; (d) Taraxacum officinale, one of the most widespread non-native plant species along MIREN mountain roads, in a sample plot on a volcanic gravel slope in the Argentine Andes; (e) non-native Verbascum thapsus on a roadside in the highly invaded lowlands of the Andes in central Chile; (f) Trifolium pratense in northern Norway, where the species is rapidly moving uphill along mountain roadsides.

Reference: Haider, S., Lembrechts, J.J., McDougall, K., Pauchard, A., Alexander, J.M., Barros, A., Cavieres, L.A., Rashid, I., Rew, L.J., Aleksanyan, A., Arévalo, J.R., Aschero, V., Chisholm, C., Clark, V.R., Clavel, J., Daehler, C., Dar, P.A., Dietz, H., Dimarco, R.D., Edwards, P., Essl, F., Fuentes-Lillo, E., Guisan, A., Gwate, O., Hargreaves, A.L., Jakobs, G., Jiménez, A., Kardol, P., Kueffer, C., Larson, C., Lenoir, J., Lenzner, B., Padrón Mederos, M.A., Mihoc, M., Milbau, A., Morgan, J.W., Müllerová, J., Naylor, B.J., Nijs, I., Nuñez, M.A., Otto, R., Preuk, N., Ratier Backes, A., Reshi, Z.A., Rumpf, S.B., Sandoya, V., Schroder, M., Speziale, K.L., Urbach, D., Valencia, G., Vandvik, V., Vitková, M., Vorstenbosch, T., Walker, T.W.N., Walsh, N., Wright, G., Zong, S. & Seipel, T. (2022). Think globally, measure locally: The MIREN standardized protocol for monitoring plant species distributions along elevation gradients. Ecology & Evolution, 12, e8590:

This blog post was written by Jonas Lembrechts and was first published on The 3D Lab: Discovering Dynamic Distributions website. Read the original here.

The MRI is proud to have been an early collaborator and supporter of the MIREN initiative. Find out more about the MRI’s history here.

Cover image by Pixabay user rottonara.
